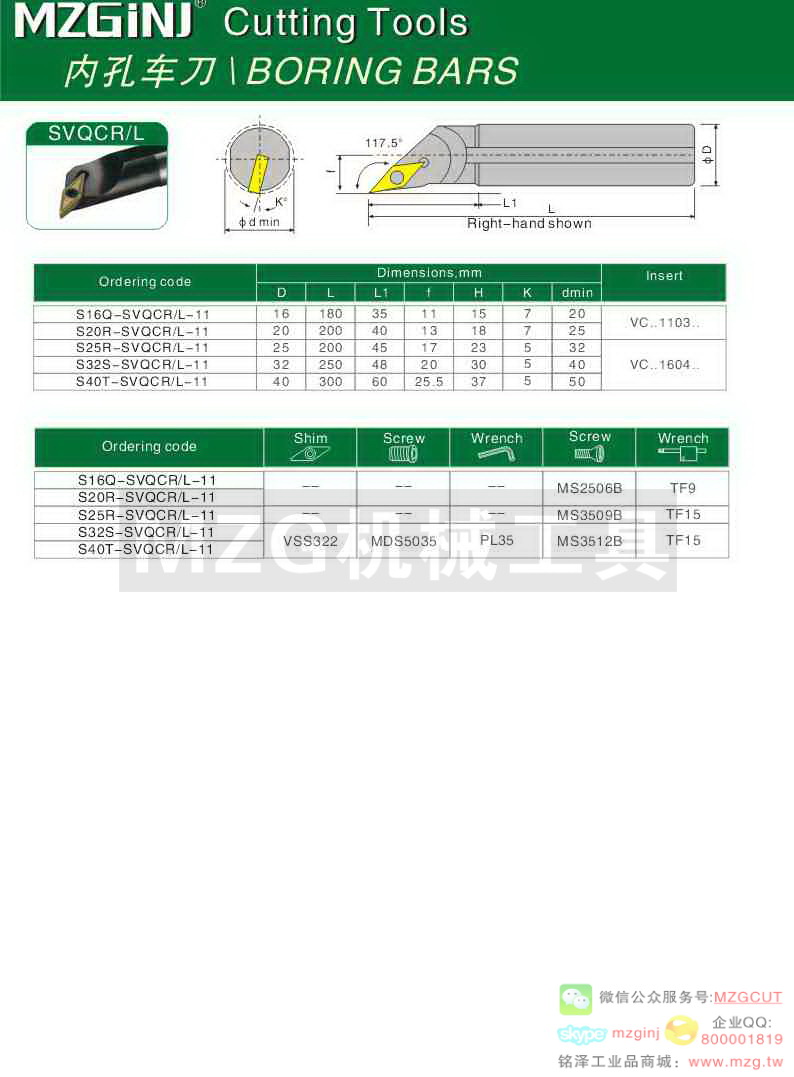

内孔车刀 \ BORING BARS R Cutting Tools Cutting Tools R Insert Shim Wrench Screw Screw Wrench VC..1103.. VC..1604.. -- -- VSS322 -- -- MDS5035 -- -- PL35 MS2506B MS3509B MS3512B TF9 TF15 TF15 SVQCR/L Right-hand shown K° φd min L1 L f φD 117.5° Ordering code Dimensions,mm D L L1 f H K dmin S16Q-SVQCR/L-11 S20R-SVQCR/L-11 S25R-SVQCR/L-11 S32S-SVQCR/L-11 S40T-SVQCR/L-11 16 20 25 32 40 180 200 200 250 300 35 40 45 48 60 11 13 17 20 25.5 15 18 23 30 37 20 25 32 40 50 7 7 5 5 5 Ordering code S16Q-SVQCR/L-11 S20R-SVQCR/L-11 S25R-SVQCR/L-11 S32S-SVQCR/L-11 S40T-SVQCR/L-11
